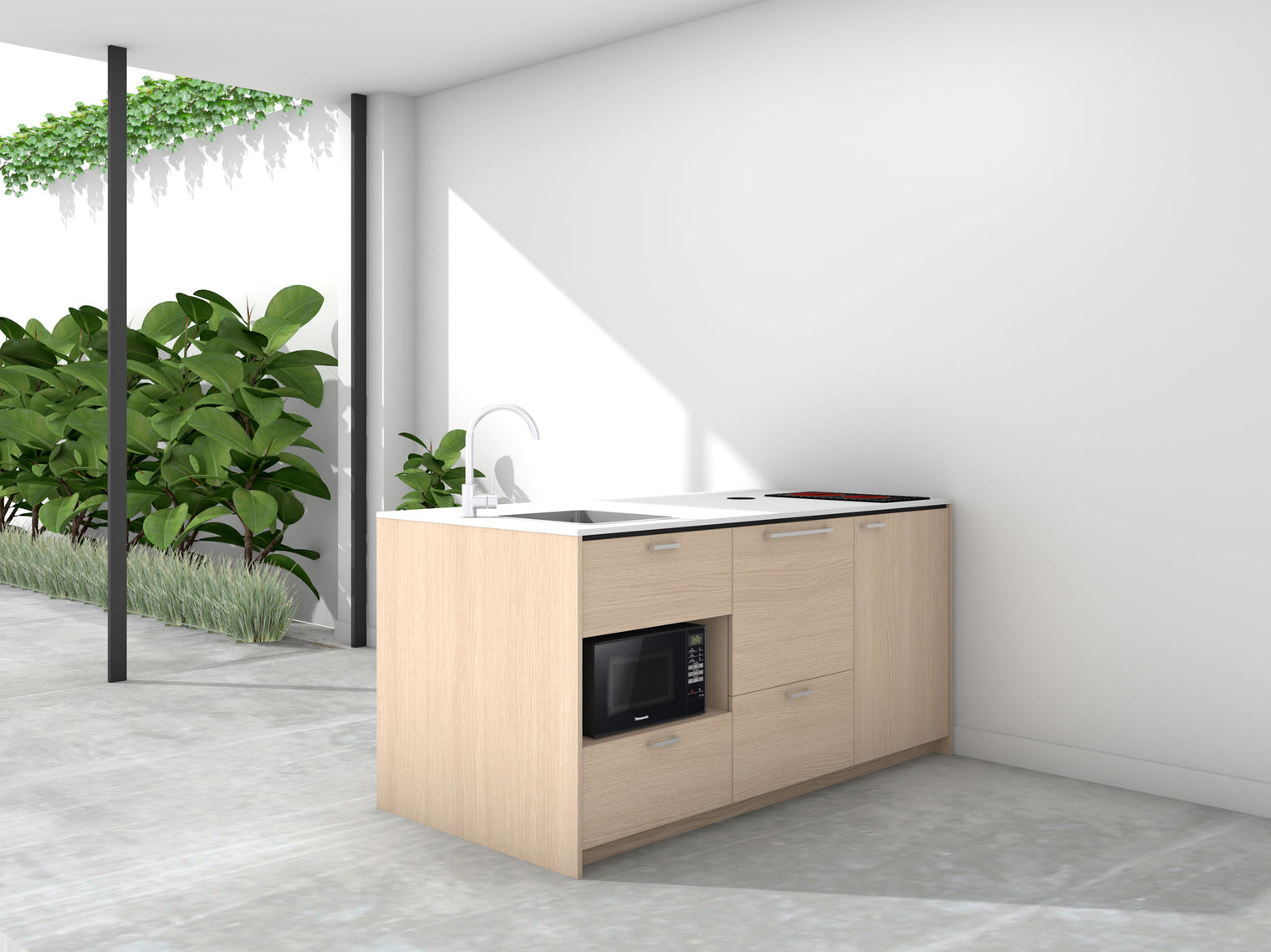

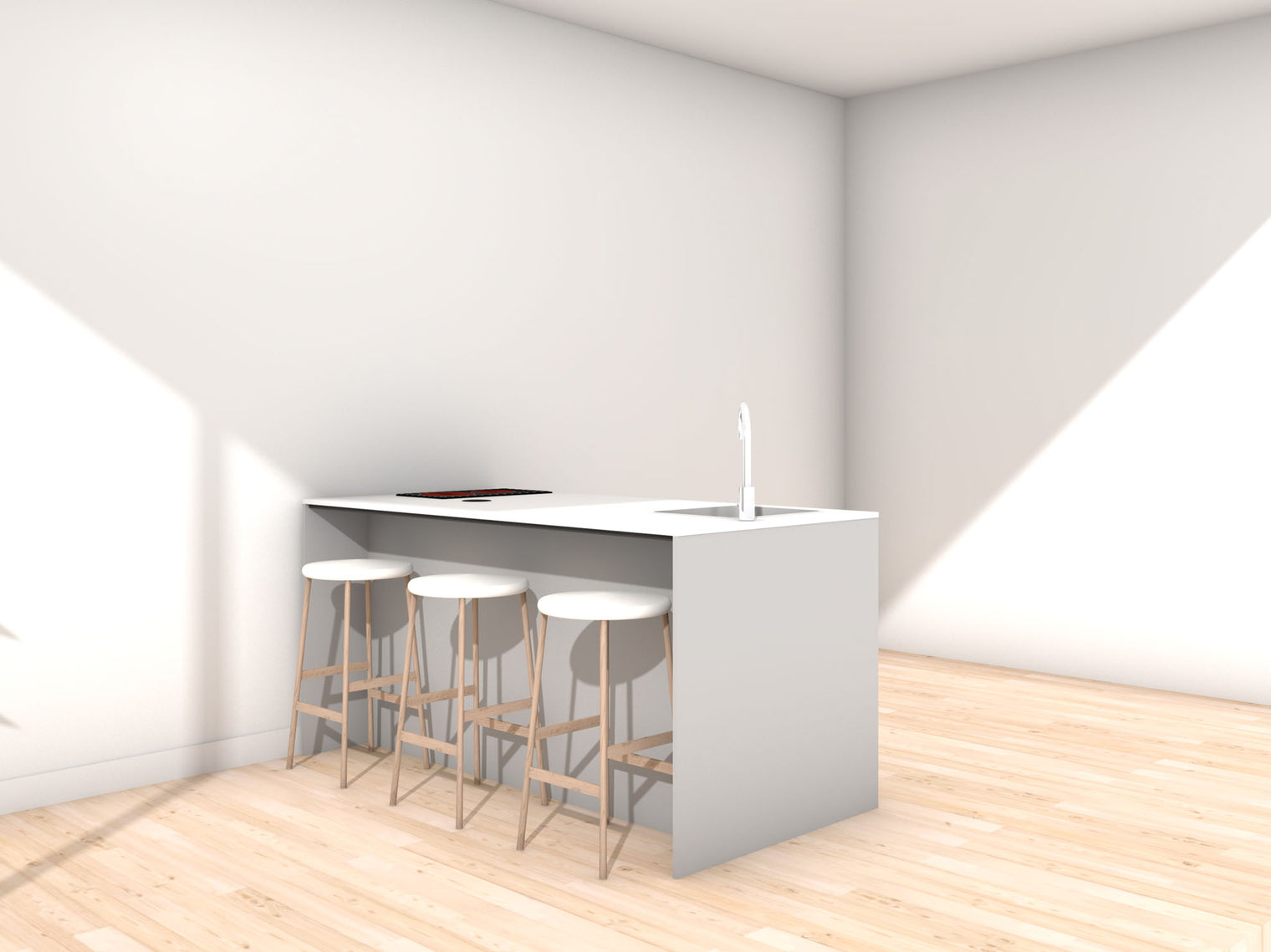

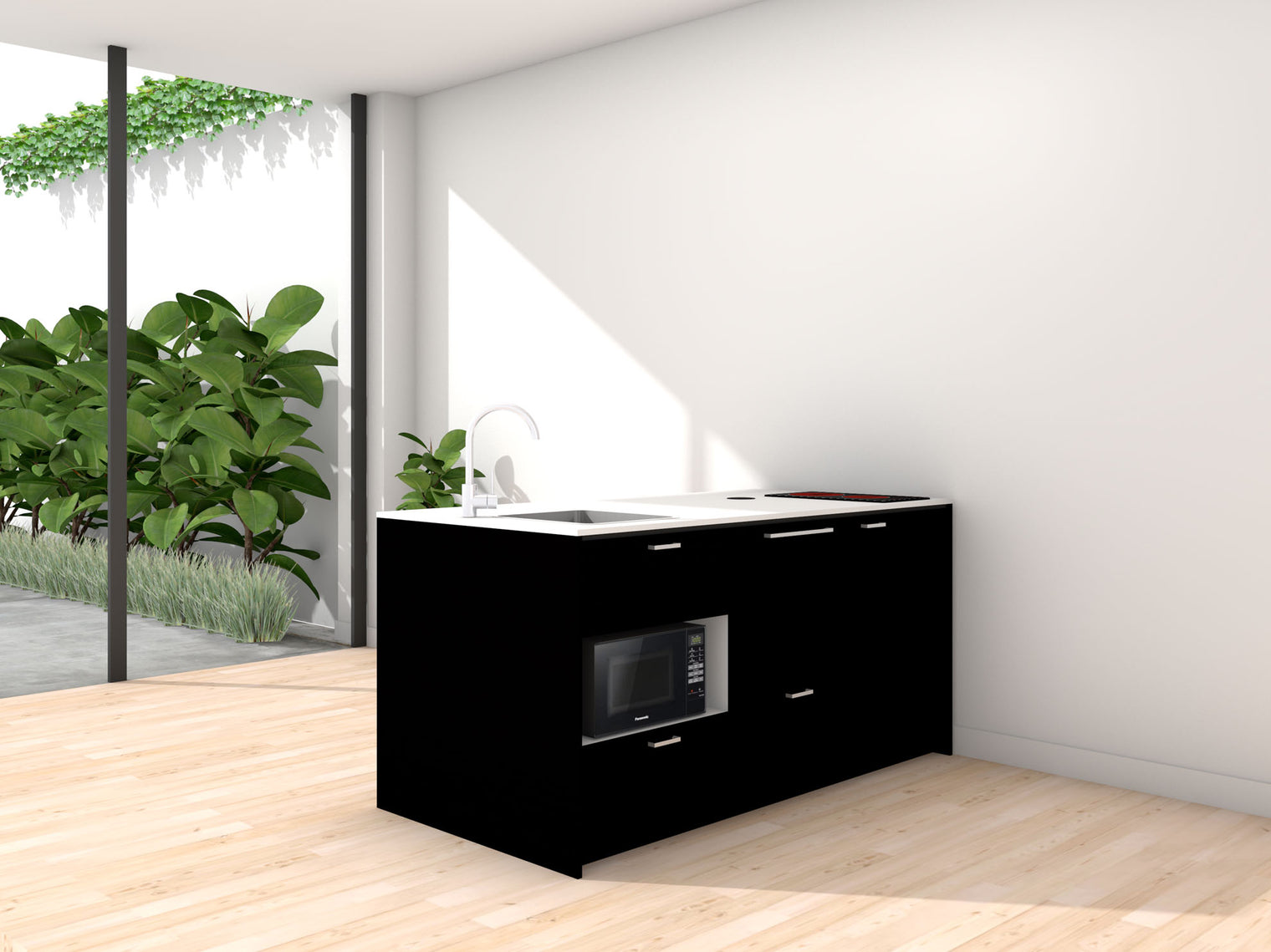

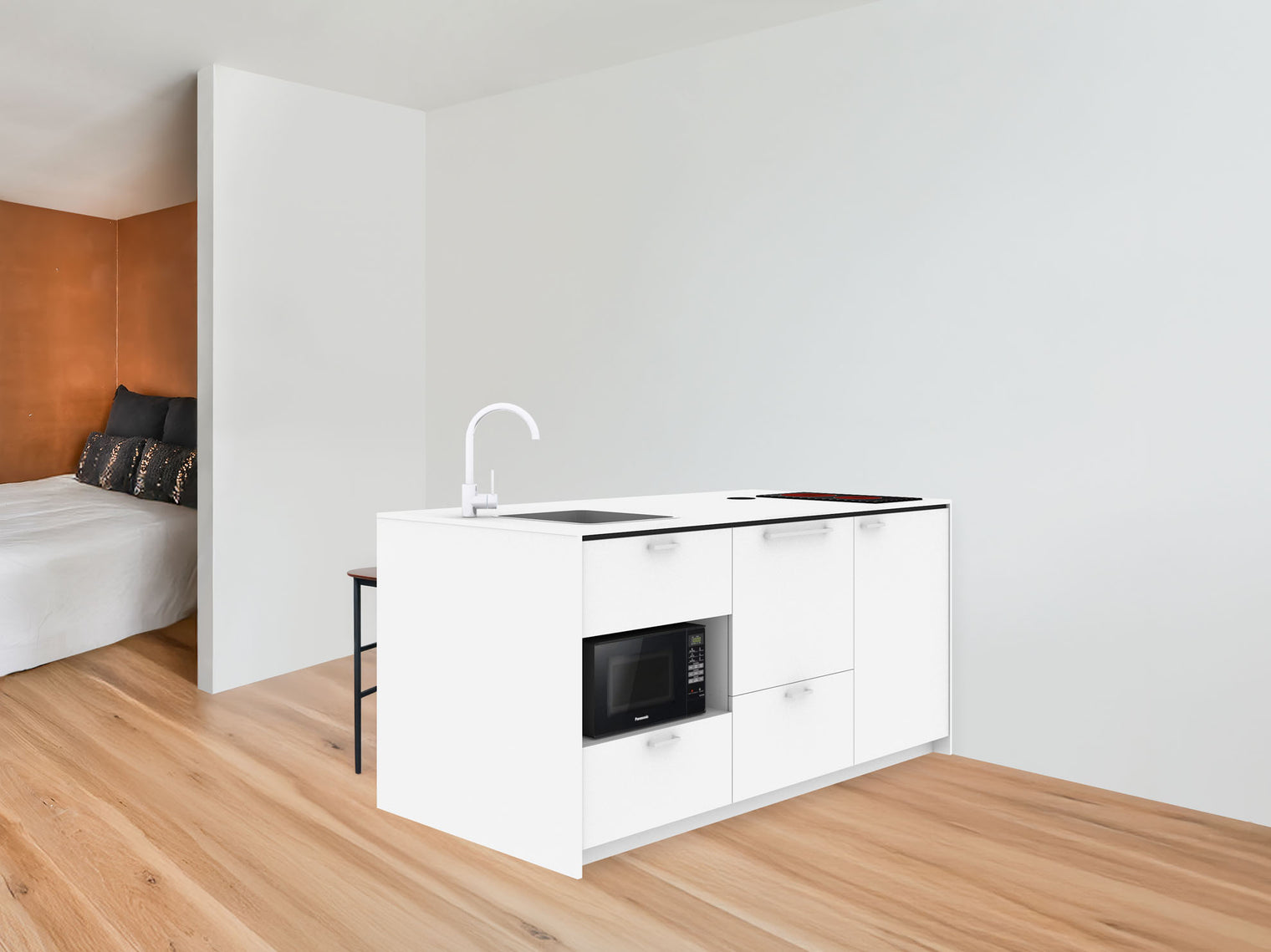

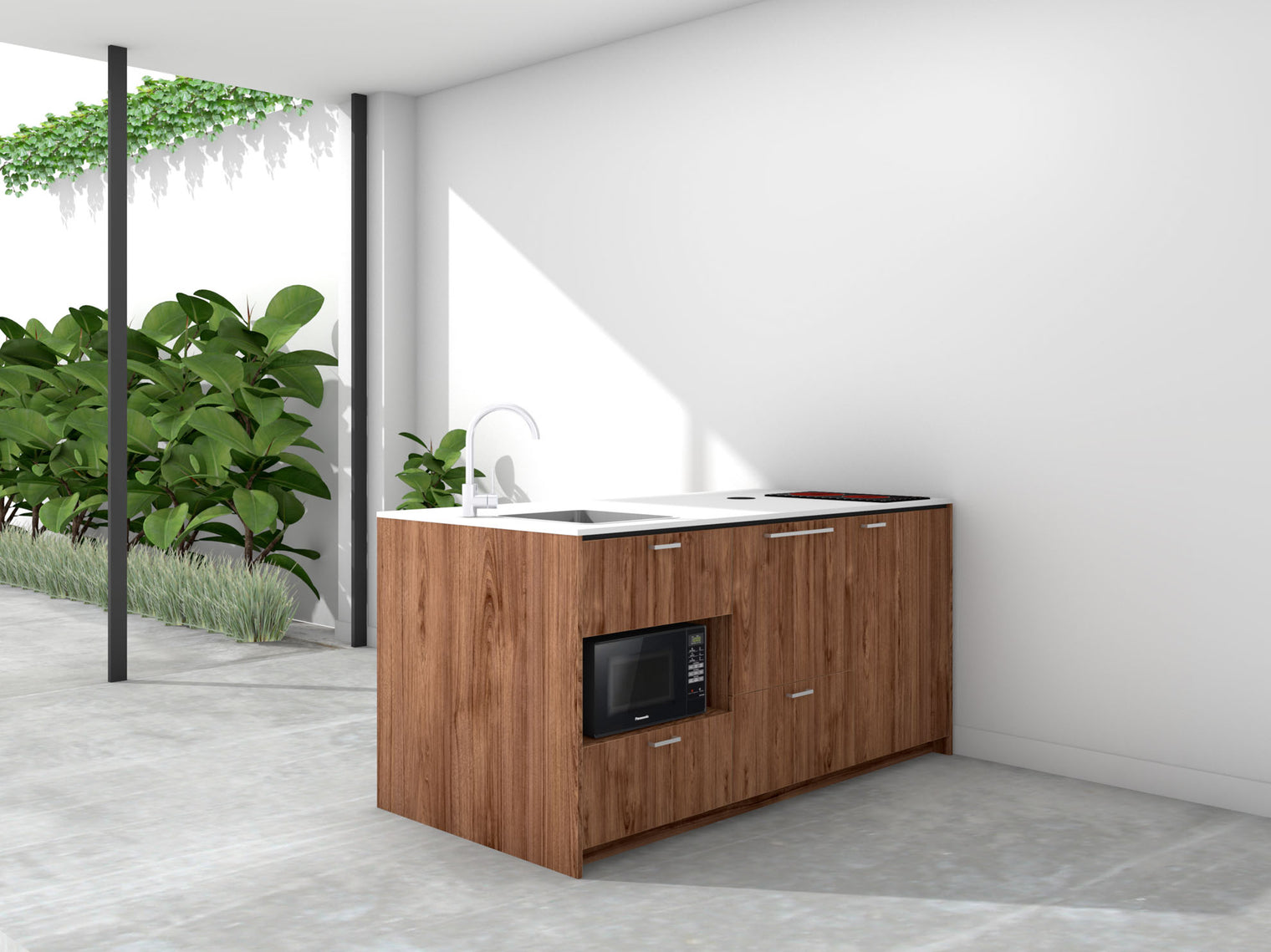

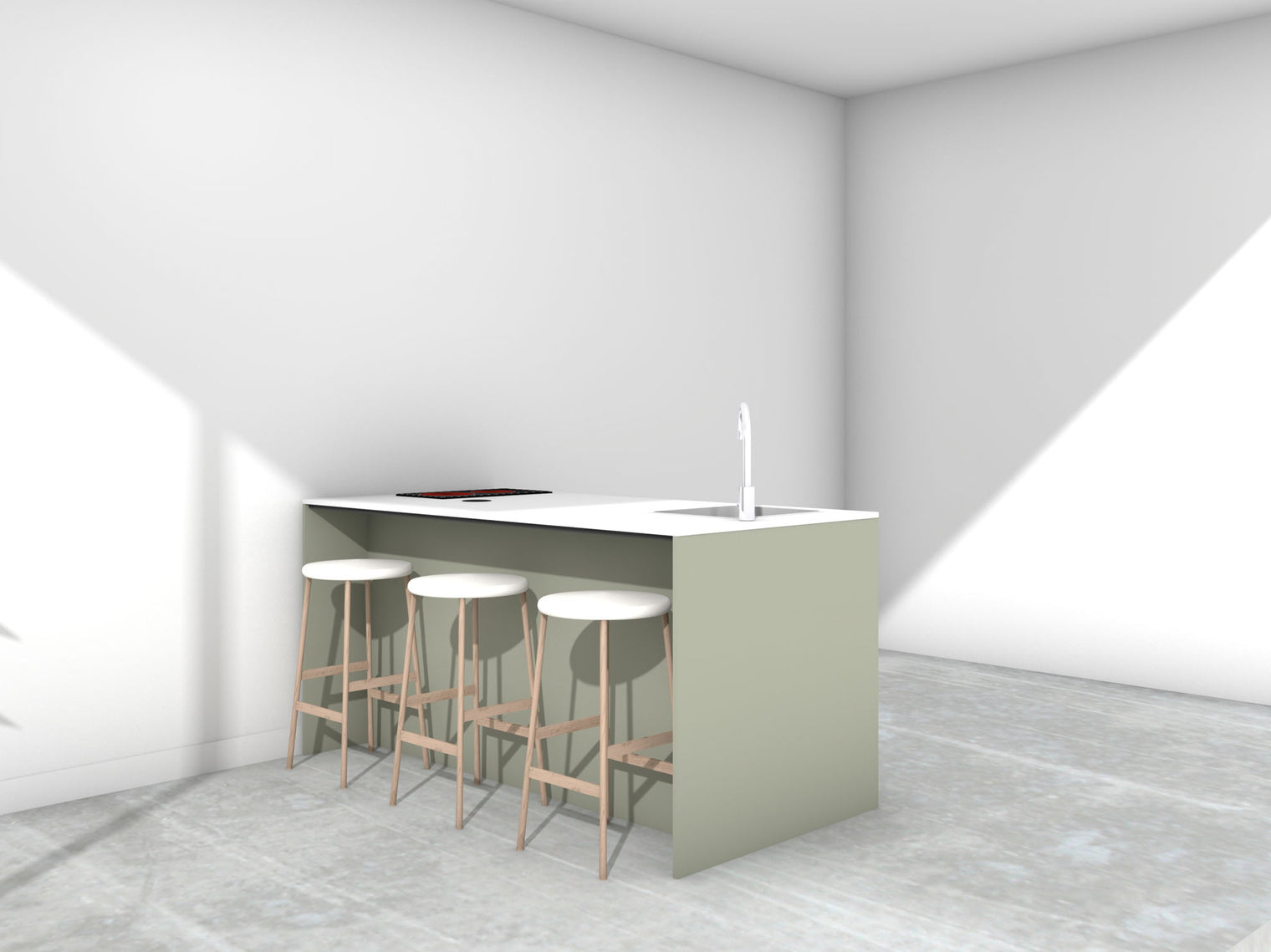

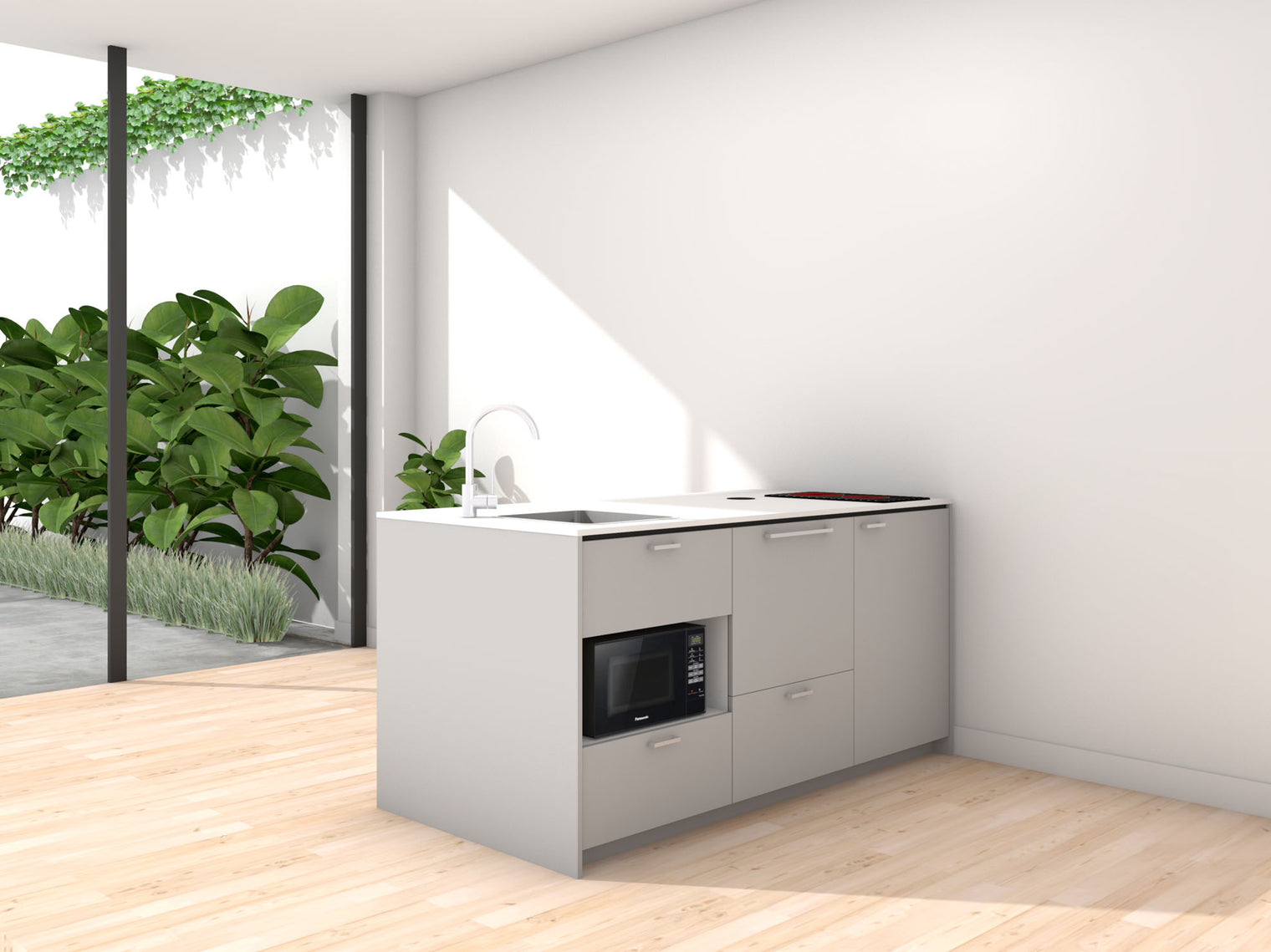

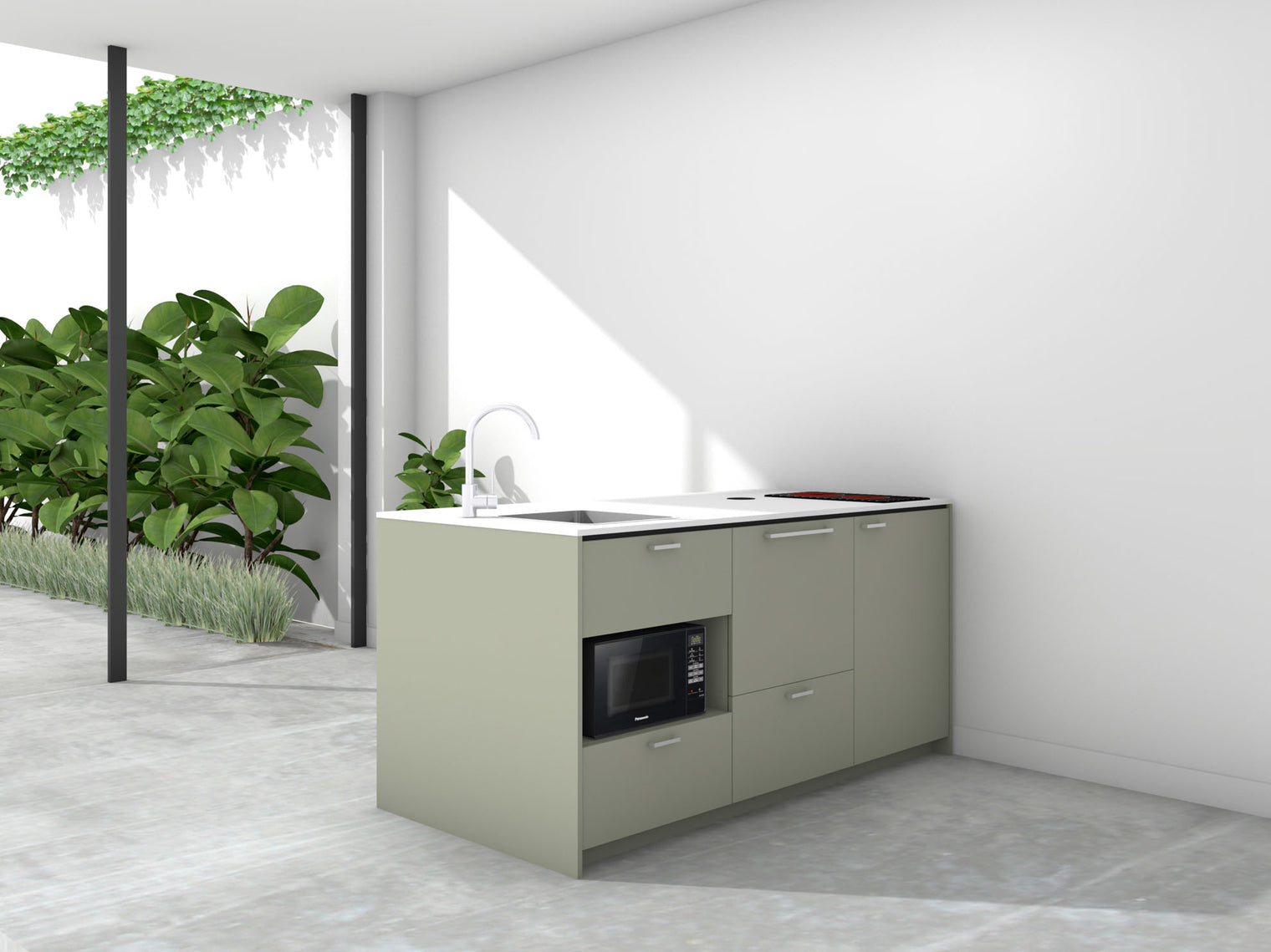

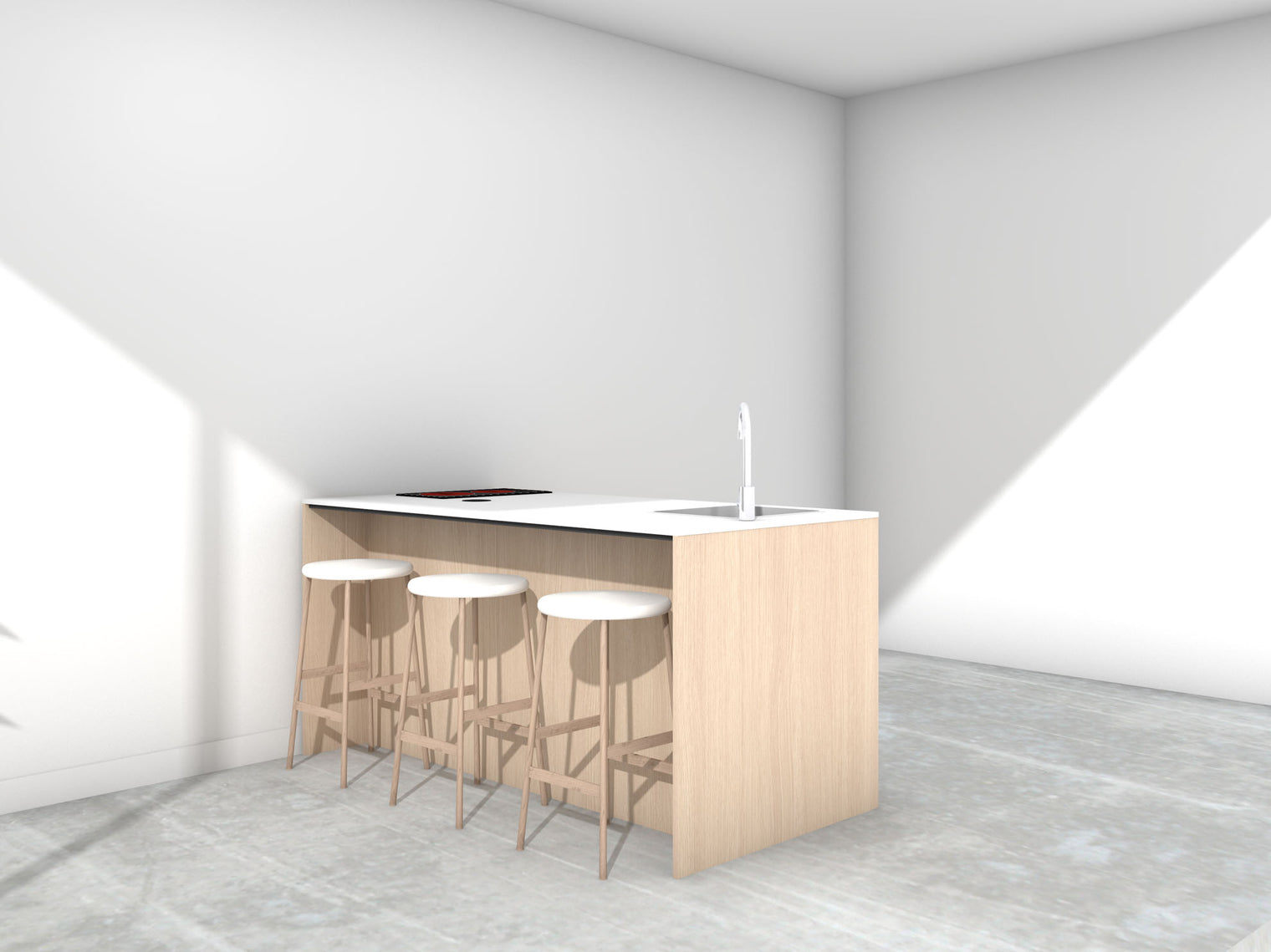

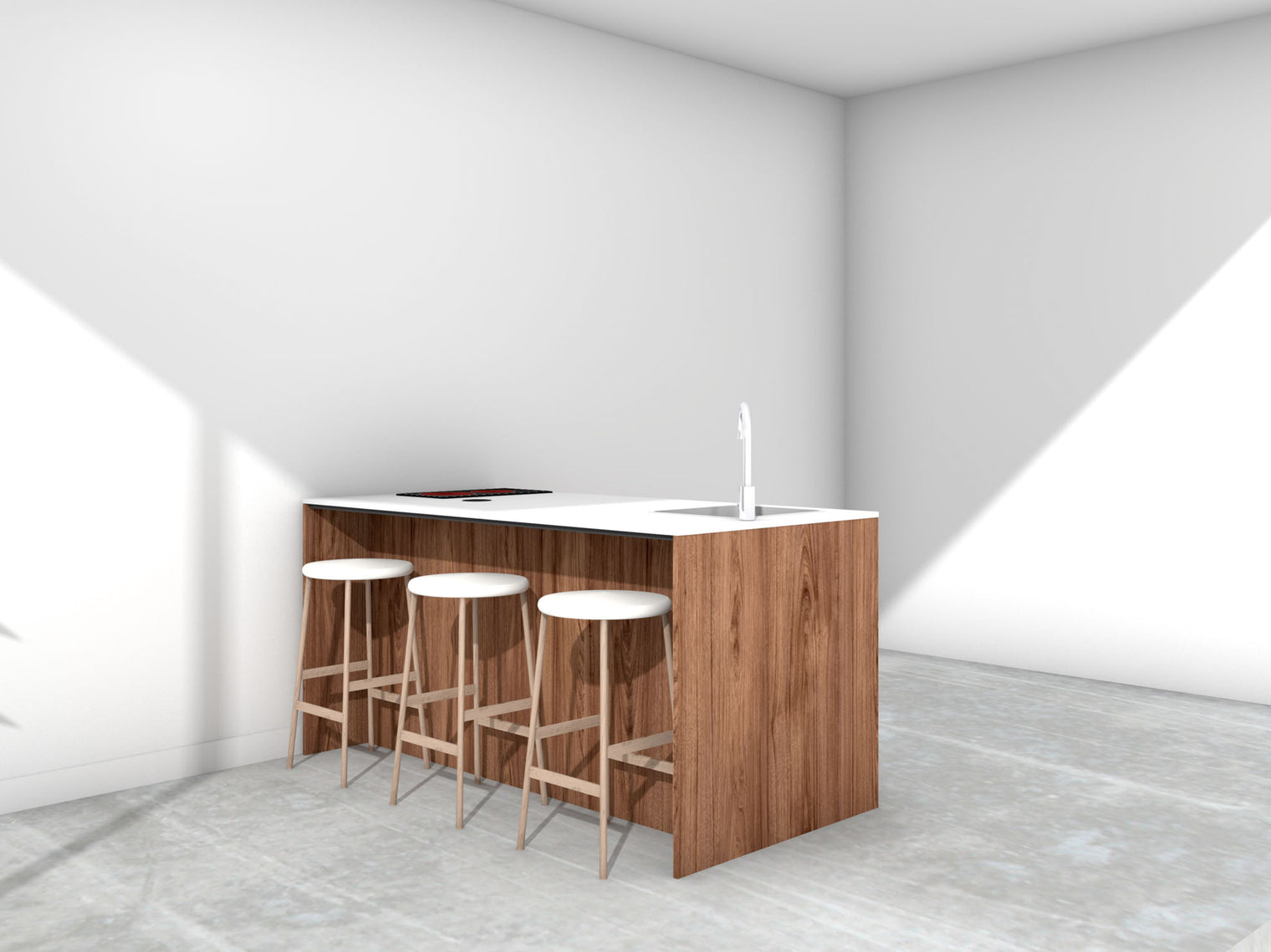

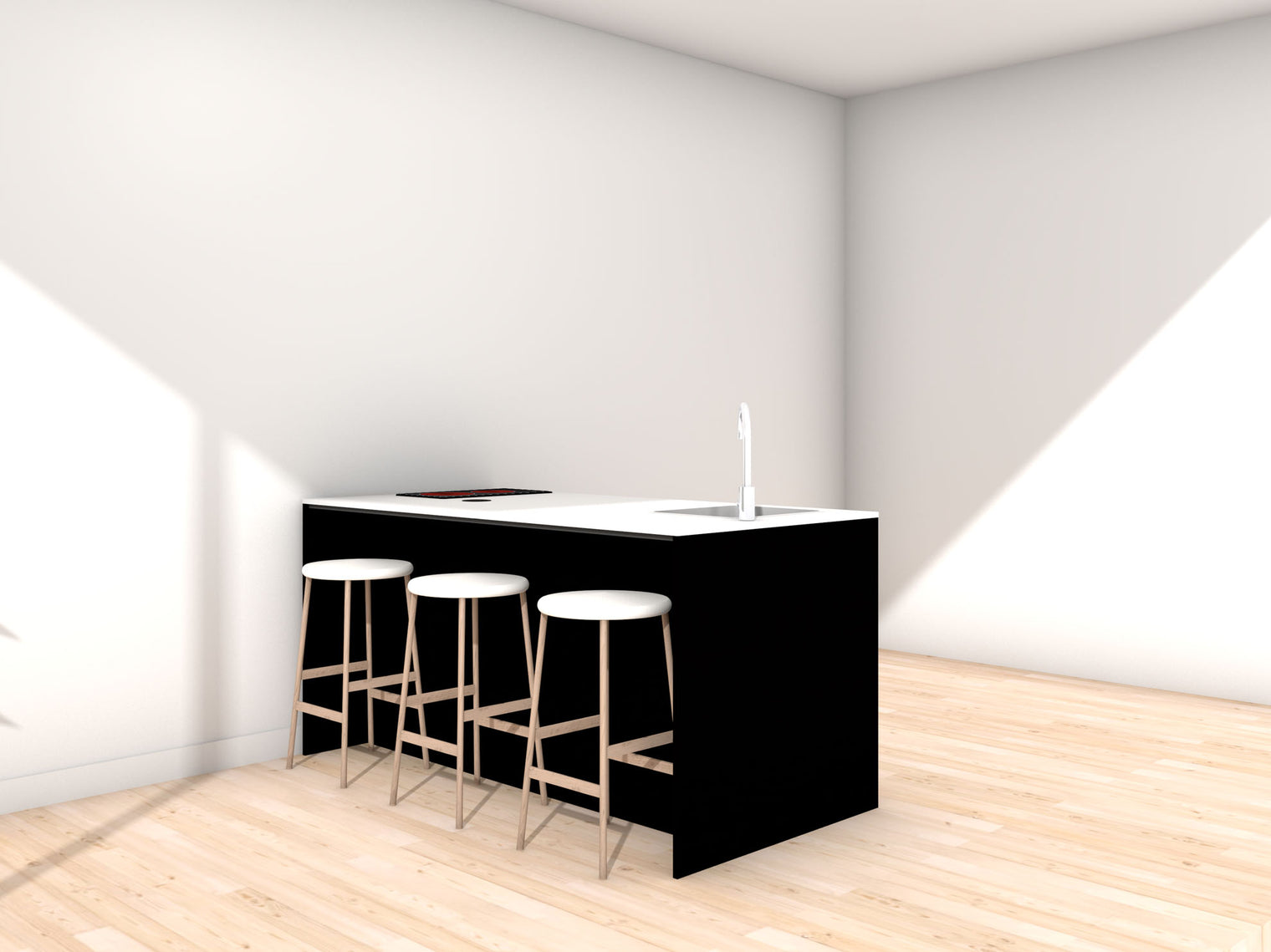

Berlin

• 78L fridge freezer installed. 20L Microwave and Dishwasher pre-fitted and repackaged for transport. Cooktop installed.
• Cooktop requires connection to isolation switch on site by a registered electrician.
• 3 x Double power outlets, Isolation switch, 3 x 20Amp circuits and junction box.
• Refer to the proposed electrical circuit and discuss your general power requirements with your registered electrician.
• Sink and mixer tap with waste and P Trap installed.
• Refer to the plumbing diagram and discuss your incoming water and waste water requirements with your registered plumber.

• Delivered fully assembled to a ground floor location providing you have the right access. Some models delivered mostly assembled with instructions, due to weight. Check access to final location.
• To assemble your kitchenette, you will need a no.2 square drive, spirit level, masking tape and neutral or matching colour silicone to seal the benchtop and splash back. A battery-powered Screw Gun is recommended. Cabinetry can be heavy so we suggest a minimum of two people during assembly and installation.

• Dimensions O/A (mm): 905H x 1800W x 1000D
• Total weight: 238kg inc appliances

Plumbing & Electrical Diagrams
