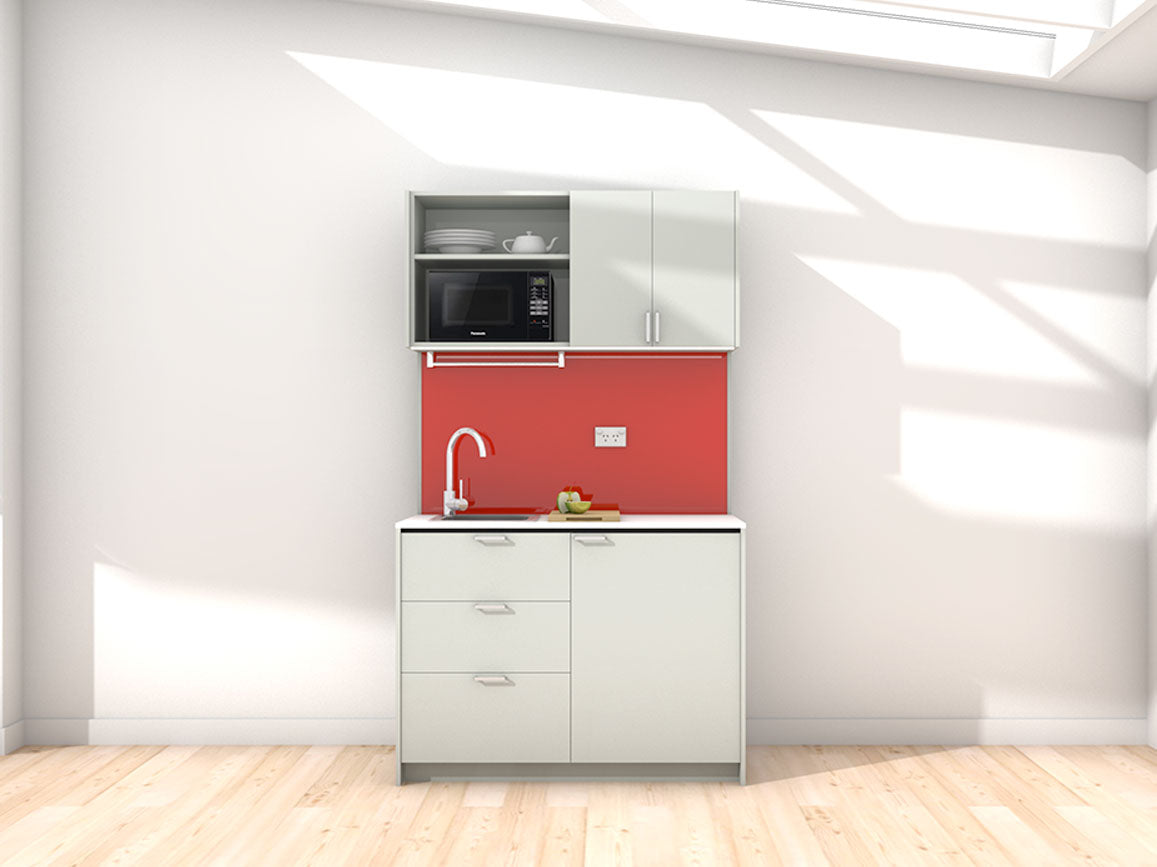

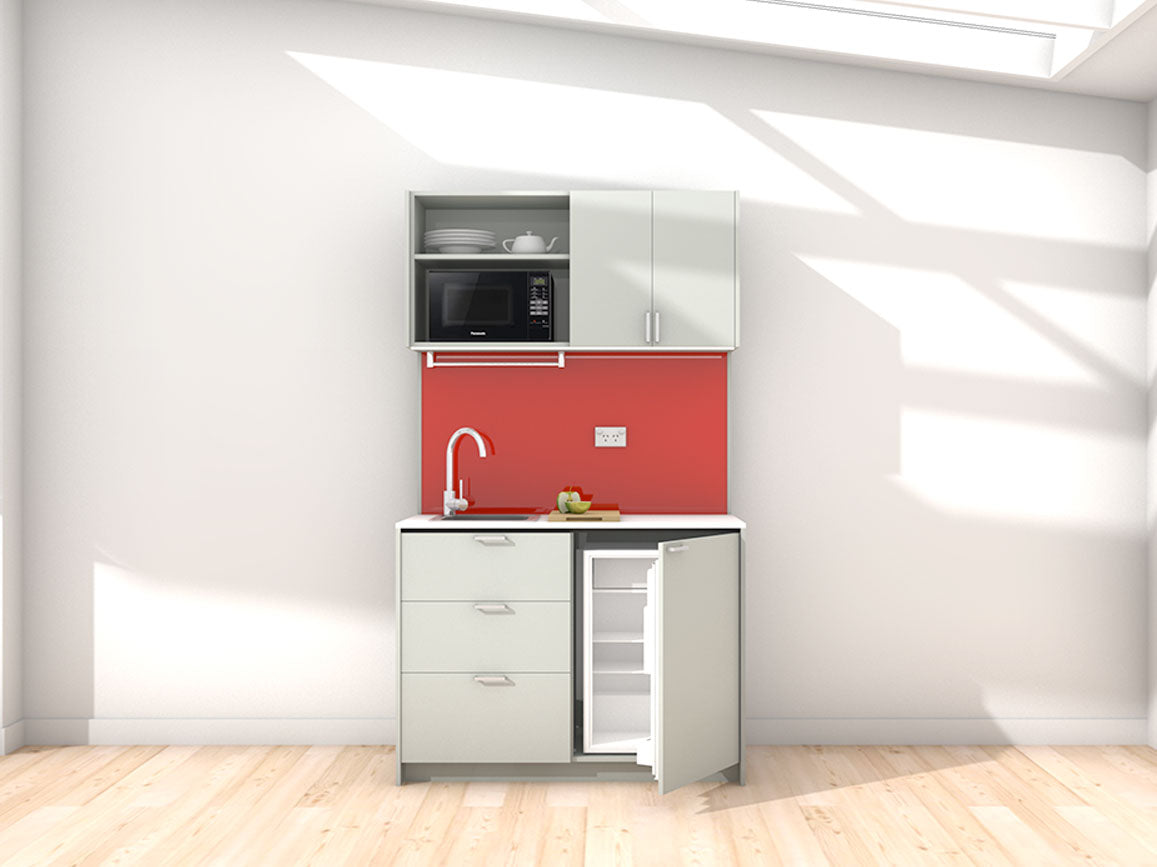

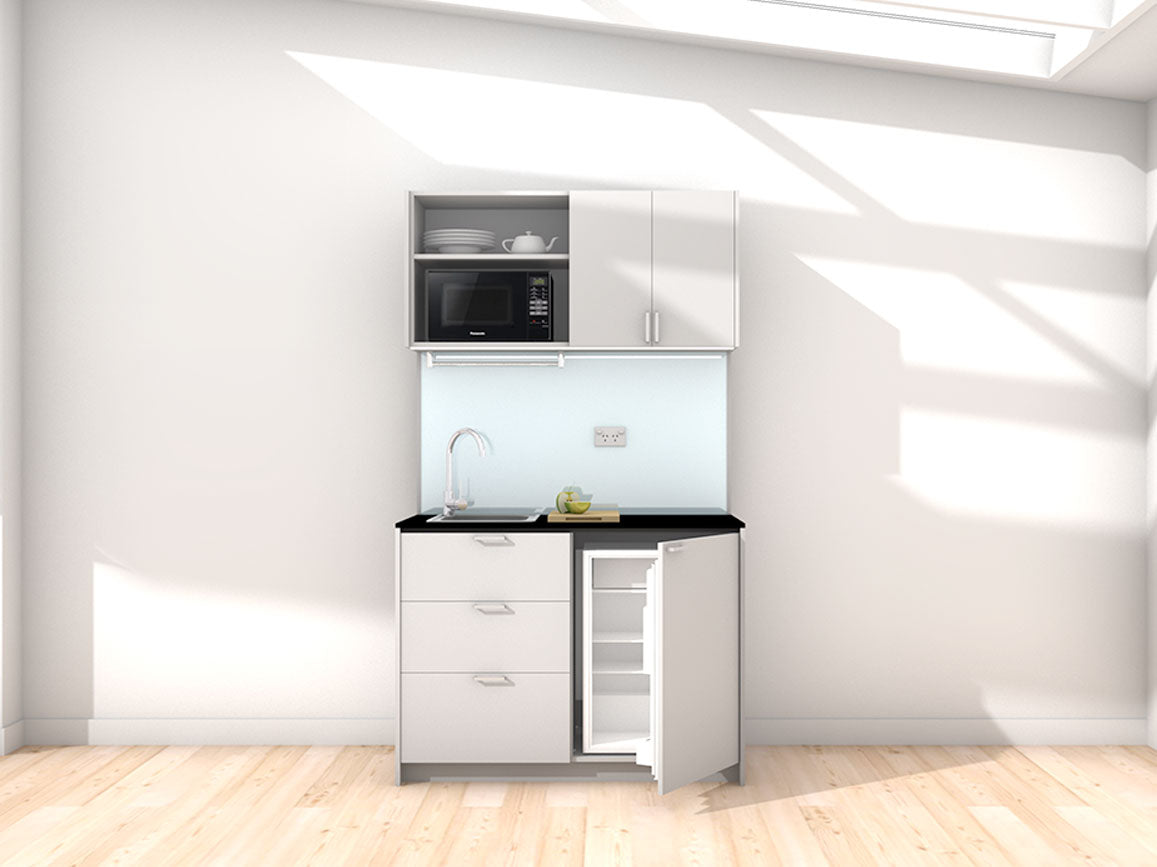

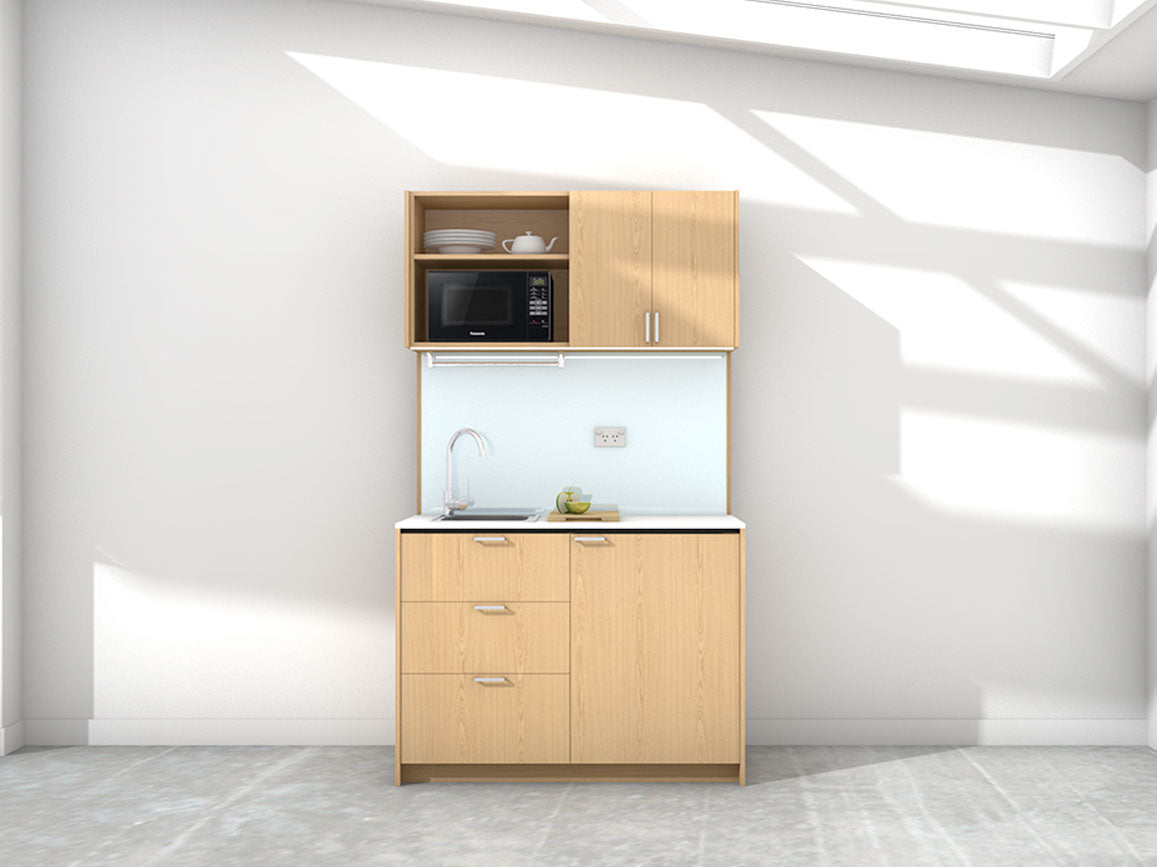

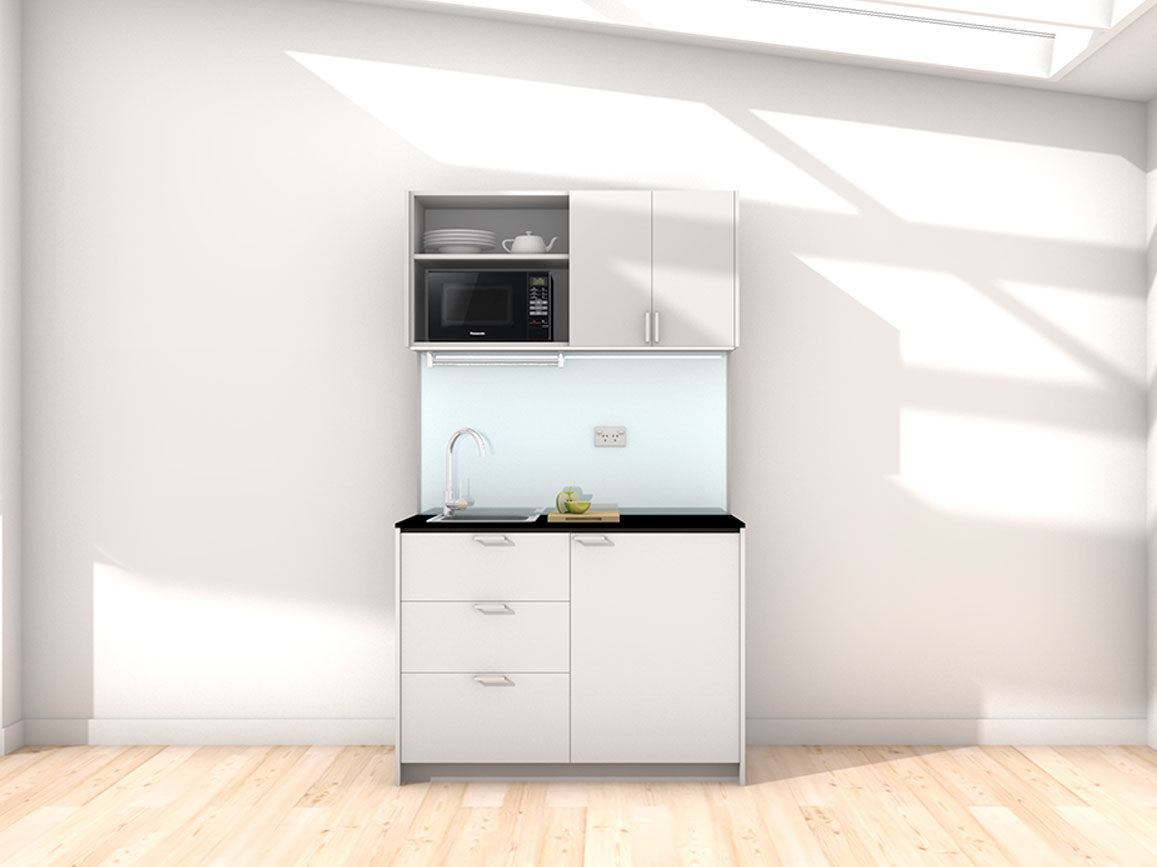

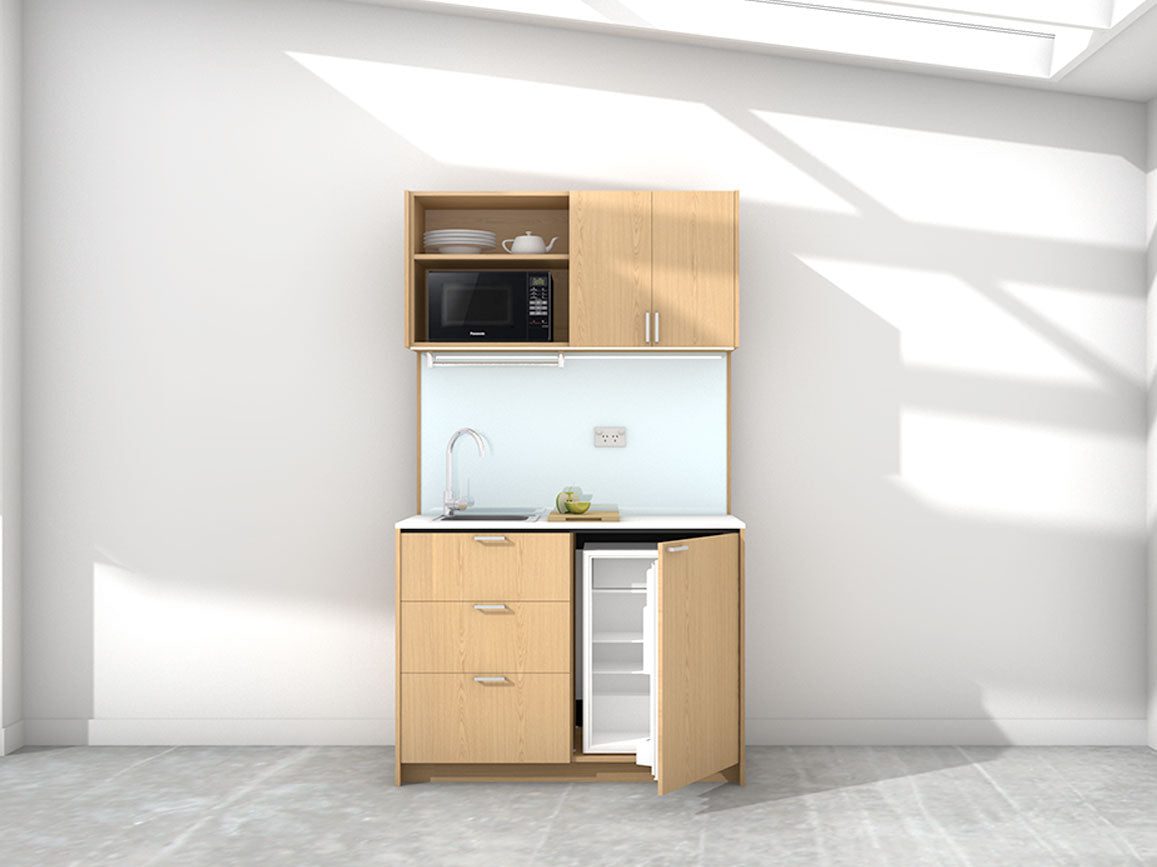

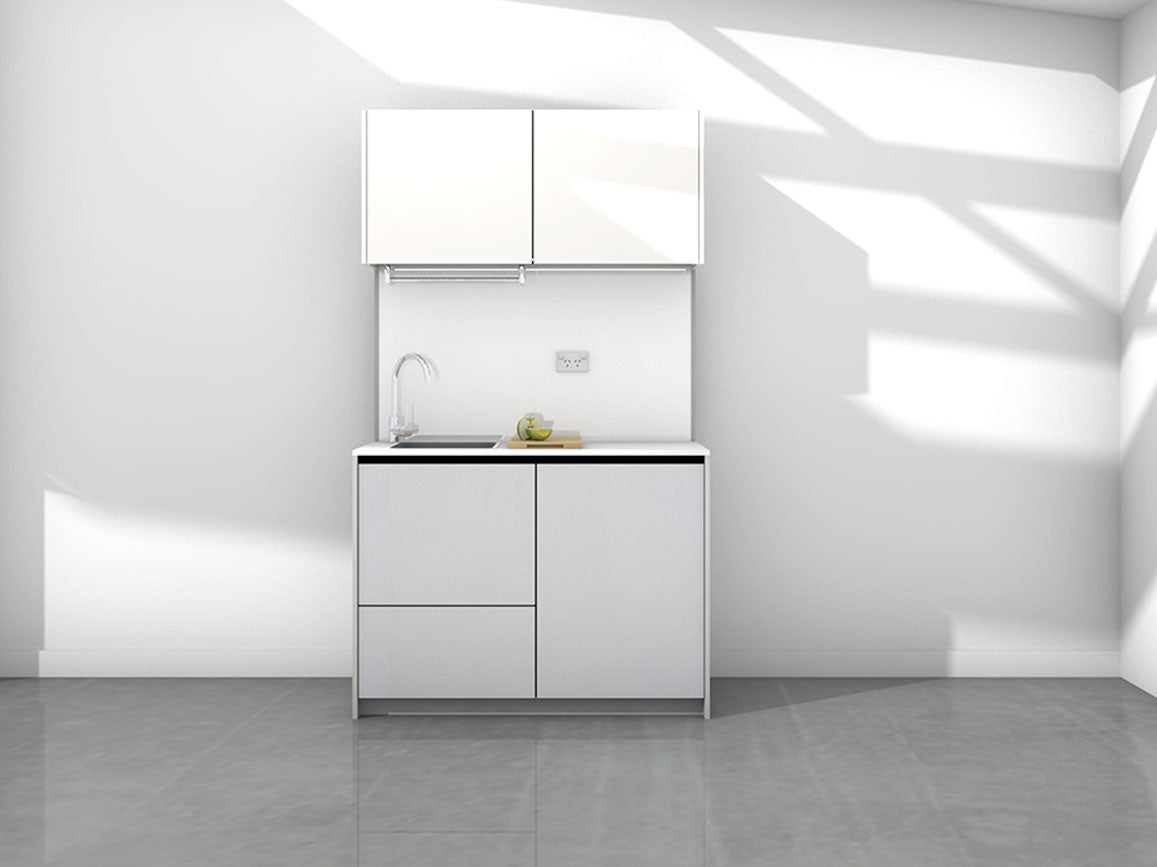

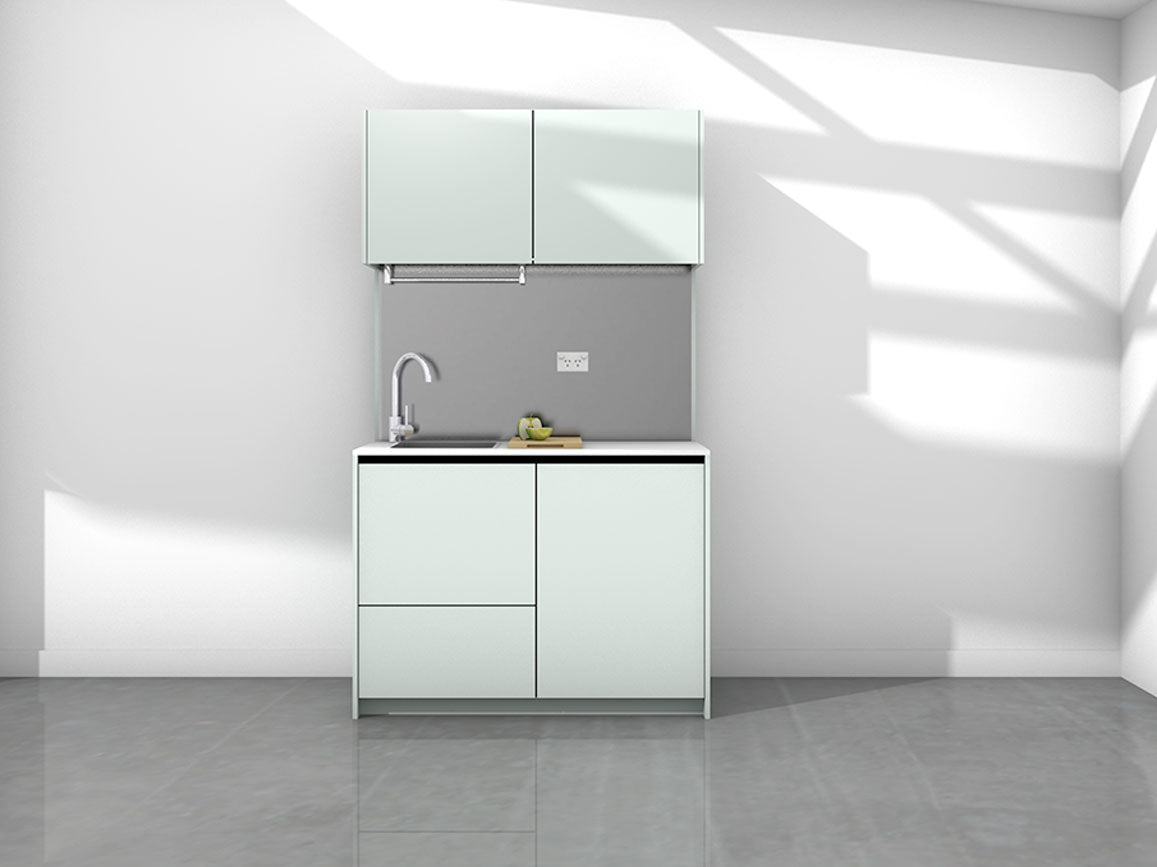

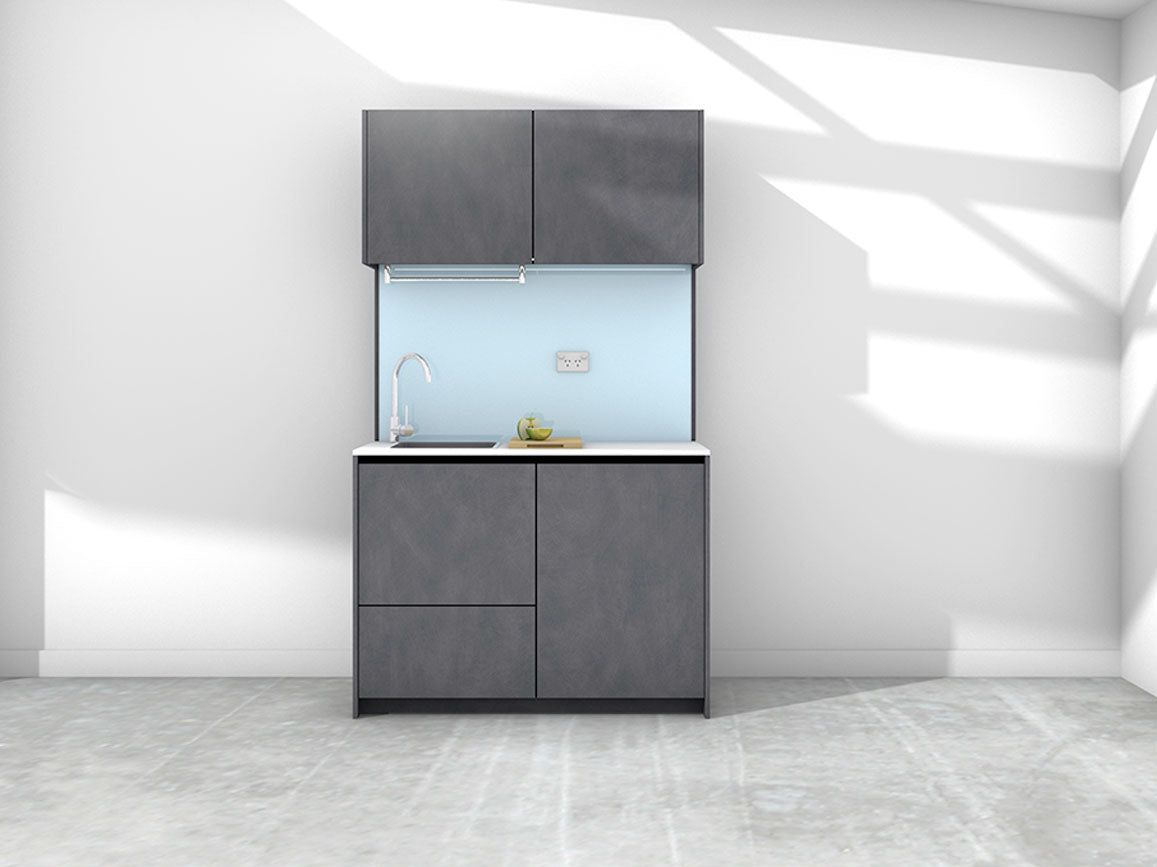

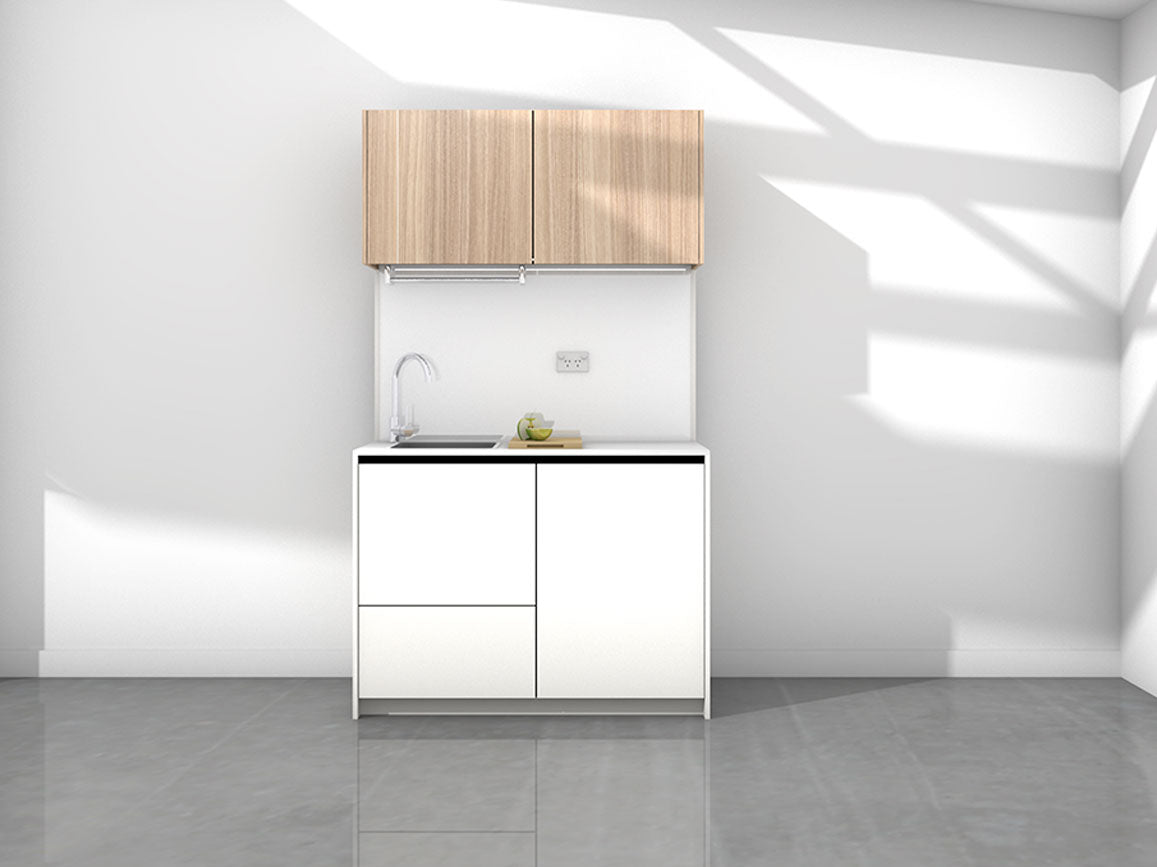

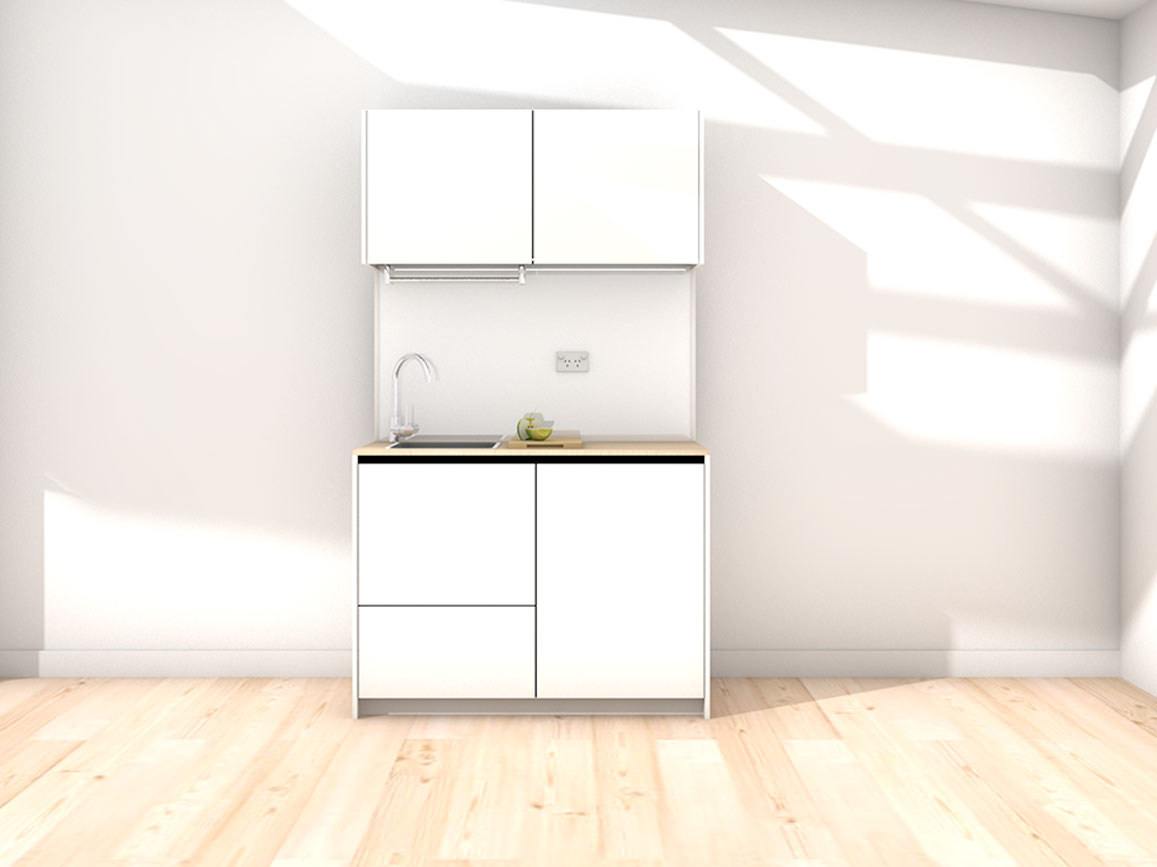

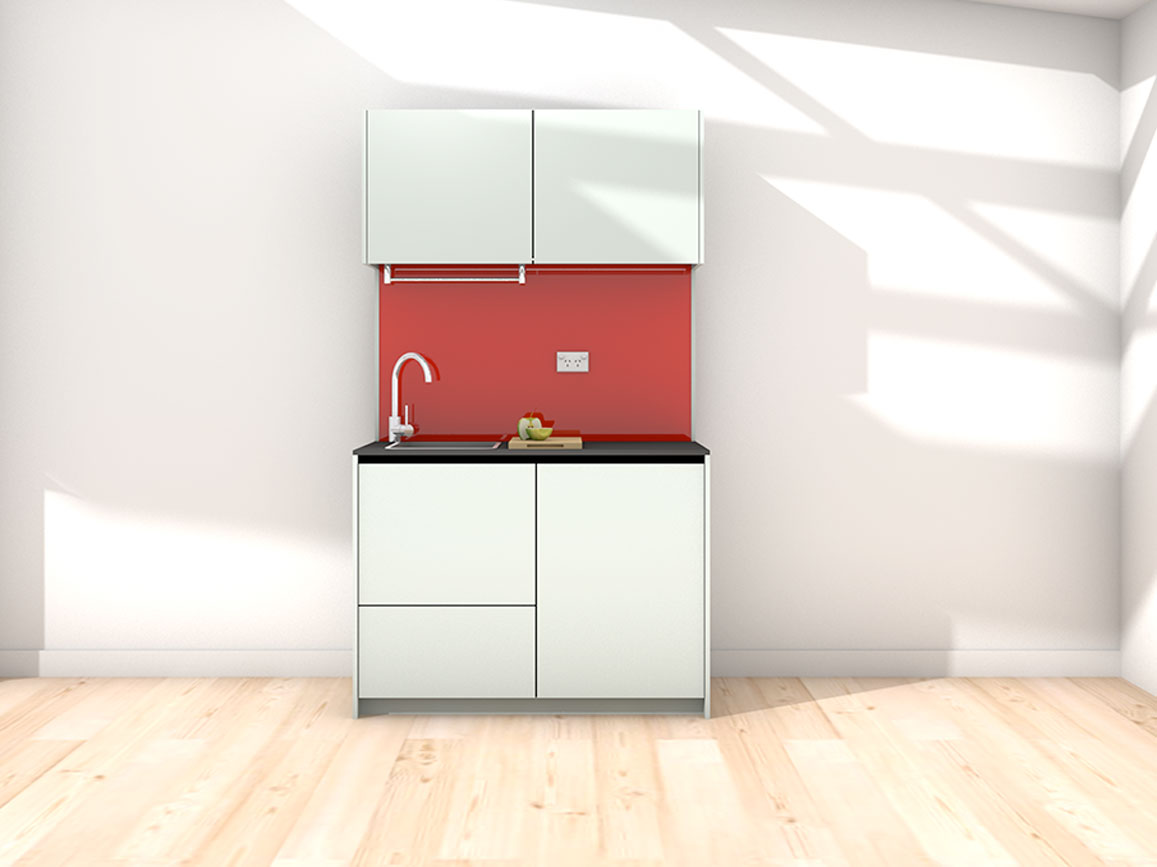

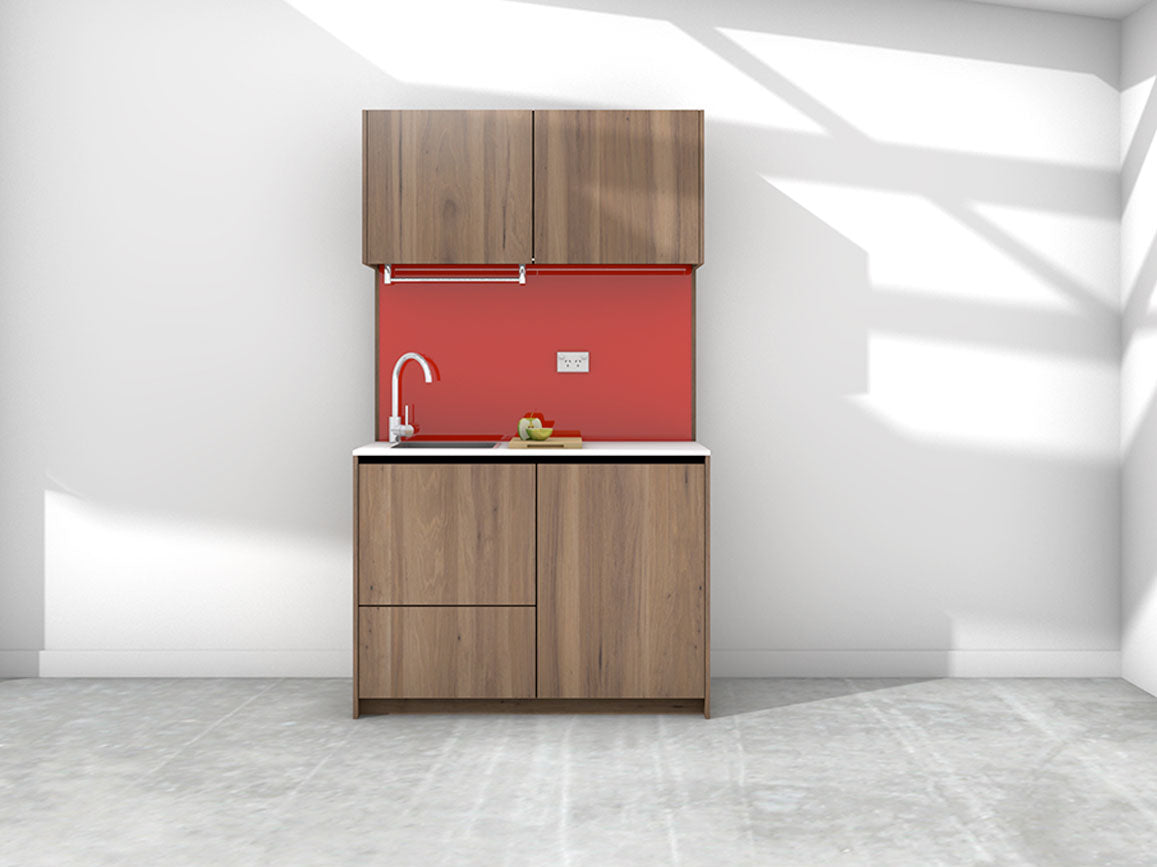

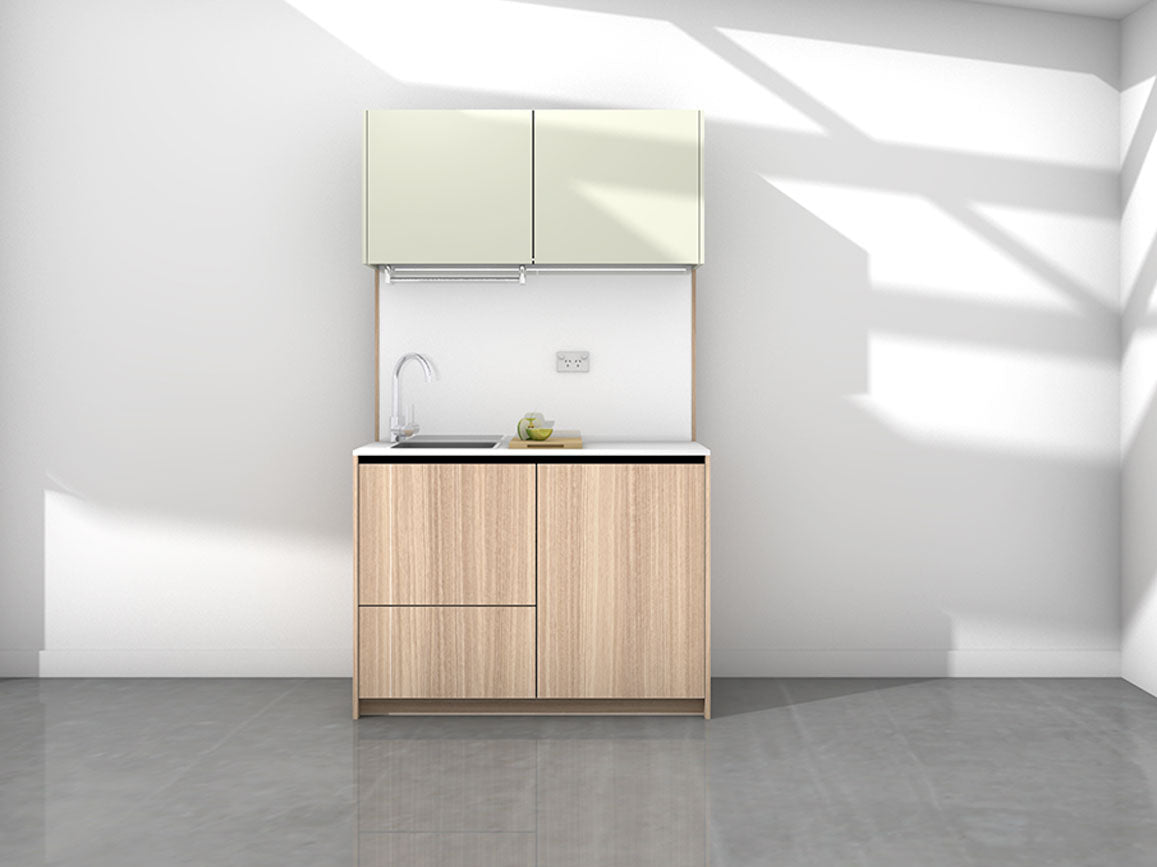

Charlie

• 78L fridge freezer installed. 20L Microwave prefitted and repackaged for transport. Splashback and Lighting installed.
• 3 x Double power outlets, 2 x 20Amp circuits and junction box.
• Refer to the proposed electrical circuit and discuss your general power requirements with your registered electrician.
• Sink and mixer tap with waste and P Trap installed.
• Refer to the plumbing diagram and discuss your incoming water and waste water requirements with your registered plumber.

• Delivered mostly assembled with instructions to a ground floor location. Check access to final location.
• To assemble your kitchenette, you will need a no.2 square drive, spirit level, masking tape and neutral or matching colour silicone to seal the benchtop and splash back. A battery-powered Screw Gun is recommended. Cabinetry can be heavy so we suggest a minimum of two people during assembly and installation.

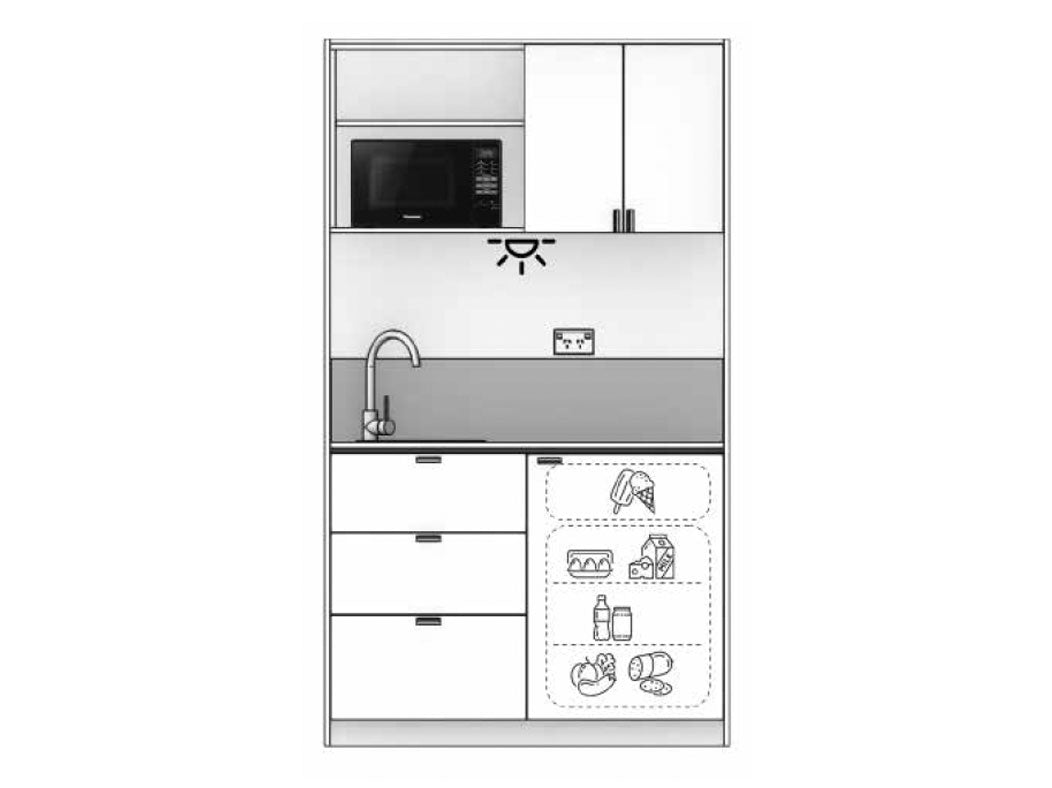

• Dimensions O/A (mm): 2084H x 1200W x 650D
• Total weight: 203kg inc appliances

Plumbing & electrical Diagrams
